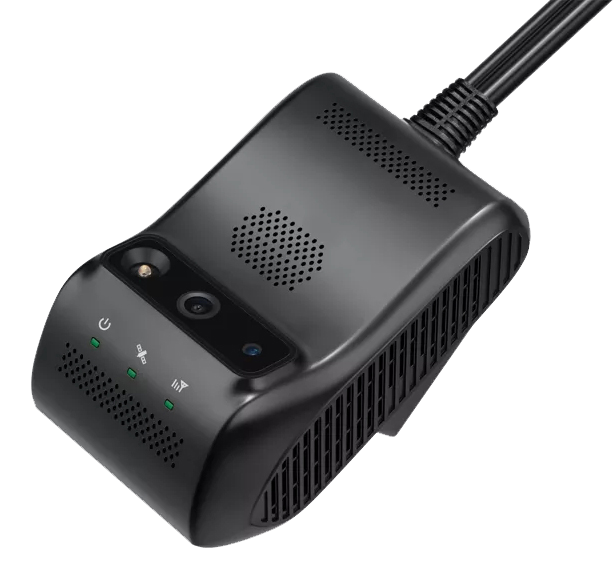

JC400P 4G GPS Tracking
Driver Behaviour Monitoring
Control the driver’s driving dynamics, rationalize the driver’s behaviors such as harsh acceleration, rapid deceleration, and hard braking to reduce the accident rate and improve fuel economy of the fleet.
-
Harsh Acceleration
-
Hard Braking
-
Sharp Turn
Highly Integrated Design
Inheriting the classic integrated dual-record design, JC400P is the combination of road-facing and cabin view high-definition cameras, which observes the road and driver dynamics. Designed with a tamper-proof lock, you are able to prevent the loss of sim card and TF card, ensuring the safety of your assets and privacy. Furthermore, it is easy enough to install and use that you don’t need to fork out for expensive expert installation.
Event Video to Cloud
In the event of a serious accident, collision or improper driving behavior, the video will be automatically transmitted. With the 4G connection, you can get faster data speed and larger network coverage, and respond immediately.
Panic Button
In the event of an accident, the panic button allows the driver to asks for help by calling the SOS phone number continuously and marks important video footage for review. The external SOS button is within easy reach, making the rescue response more efficient and faster, protecting the driver’s safety.
JC400P 4G GPS Tracking
| Network Connection | Wi-Fi | 802.11 b/g/n | |
| Standard Version | GSM & WCDMA & 4G | GSM: 850/900/1800/1900 WCDMA: 85D/900/1900/2100 4G FDD: B1 B3 B5 B7 B8 B20 TDD: B38,B39,B40,B41 |
|
| American Version | GSM & WCDMA & 4G | GSM: 850/900 1800/1900 WCDMA: B2 B4 B5 B8 FDD: B2 B3 B4 B5 B7 B12 B17 TDD: B38 B40 B41 (100M) |
|
| Note: The difference in Standard Version and American Version lies in hardware. It is recommended to debug by version. | |||
| Hardware | CPU | ARM Cortex A53 @1.4GHz | |
| OS | Android | Android 8.1 GO | |
| Flash memory | RAM+ROM | LPDDR3 1GB+eMMC 16G | |
| Front camera | Forward recording | Built-in, AHD, 1080P, dynamic frame rate, 120° viewing angle | |
| Cabin View Camera | Cabin View Camera | Built-in or External, AHD, 720P, dynamic frame rate, 100° viewing angle, night vision | |
| GPS module | GPS+BDS | Built-in ceramic antenna | |
| G-Sensor | Accelerometer, Gyroscope | 6 axis | |
| MIC & Speaker | Built-in | JC400P 4G GPS Tracking | |
| SD card | Max 128GB | ||
| I/O Configuration | ACC | Ignition detection | |
| Relay | Immobilization | Remote engine cut-off | |
| UART I/O(Extended I/O) | Open for RFID reader,Fuel sensor,Load sensor,Temperature sensor | ||
| SOS | Panic button | ||
| Power | Supply voltage | DC 12-24V | work for car, truck, bus, electric automobile etc. |
| External Battery | External Battery 450mAh | For emergency situation when car battery is disconnected | |
| Size | Dimension | 109*69*52 | |
| Weight | 225g | ||
